The equipment adopted oil and gas dual-purpose stoves (which can use liquefied gas and diesel as fuel) to fully ensure the convenience and economy of using fuel in special areas.
Especially in areas with strong winds, the fuel type is not easily affected by the wind. It improves the combustion efficiency, enhances the melting speed, reduces the construction cost, and is suitable for hot melt construction in areas with large temperature differences.
Item
Specification
Engine
15ps water cooled diesel engine with electric starting
Hydraulic driving system
Multipath hydraulic control valve, overflow valve and hydraulic motor, stir
forward and reverse, stepless speedchange
Cubage of hydraulic oil tank
70L
Cylinder of preheater
The body is made of stainless steel, and the bottom is made of boiler iron
Cylinder capacity
600kgx2
Structure
Frame structure, double layer heater insulating material is fixed between
inner container and outer layer

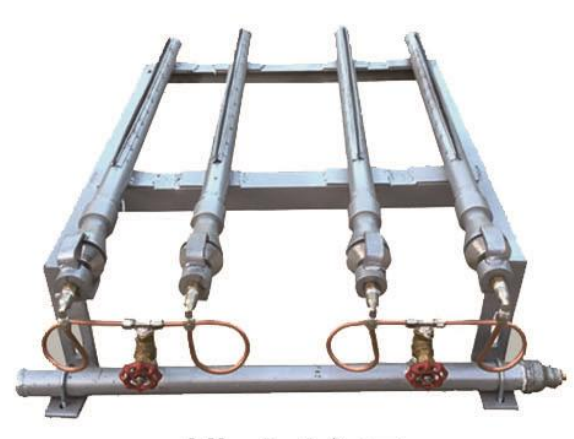

Heating system
High-efficient direct injection burner
Safety device
Specially designed automatic overload protection device can protect
hydraulic parts from damage when overloaded
Size
1800x1830x1630mm
Net weight
1100kg
