Gw-11 High pressure water blasting road marking removal with suction system
Advantage one: Imported Recycling system
It adopt recycling system imported from Germany, equipped with JETECH90-3B TYPE high pressure pump imported from American.

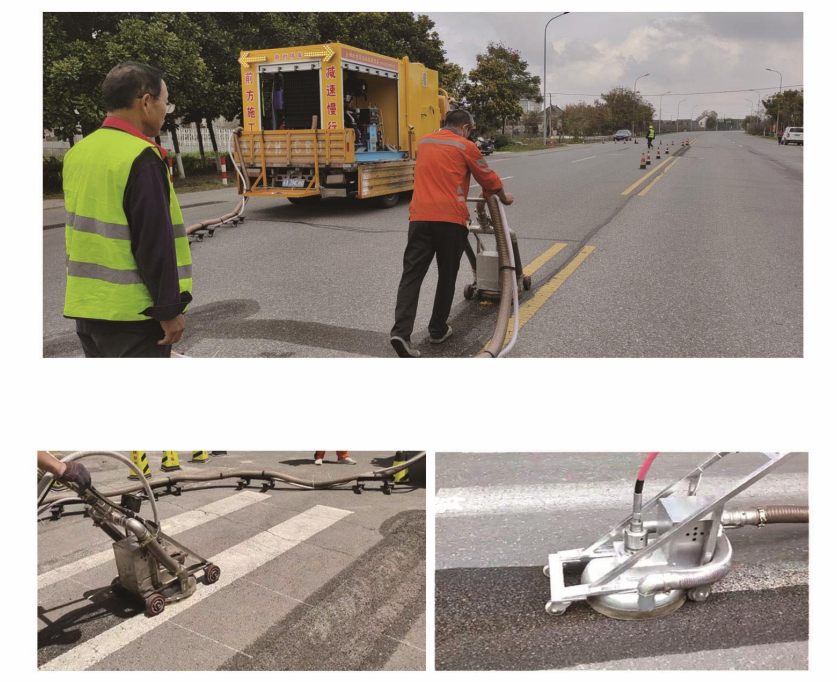

It can remove road marking without damaging the road surface, and the waste water and residue can be suctioned into waste water tank, The waste water tank can accommodated about 2 Tons waste water.

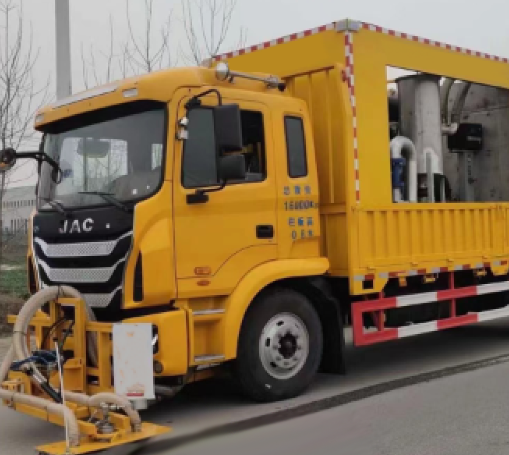

New designed vehicle, equipped with more nozzle, can be jetted from different angles to clear up road marking without damaging the road surface.
Advantage two: Automation separation system
Residual and waste water can be suctioned into vacuum chamber, what’s more, the residue can be separated from the waste water.
Automatically, residue can be placed into plastic woven bag, which can be putted in the nearby Dustbin.
The waste water will be flowed into the waste water tank. When the waste tank is full, just discharge them into the sewer through the water pipe. Very convenient, very safe, and friendly to the environment!
Even in the city road, there is no need to block the road.
The machine can work continuously, its work efficiency can over about 5.2m/min, work and recycling can be done at the same time, no need to stop the machine. Really meet the requirement of high efficient and environment protection.
GW-11
Standard model
High level model
Engine
Deutz
Cummins
Power
120kw
255kw
Speed
1500r/m
1800r/m
High pressure pump
Imported high pressure pump
Import customization, original imported valve group
Pressure
140Mp
2800Bar(36Kpsi)
Flow
35L/m
45L/m
Bear
NSK
NSK
Plunger
Hard alloy φ20
Hard alloy φ15.8
high pressure seal
Imported molding seal, forced lubrication system and oil cooling system, imported safety burst diaphragm
Imported molding seal, forced lubrication system and oil cooling system, imported safety burst diaphragm
Import
Pressure regulating valve, high pressure gauge, full
computer monitoring instrument box
Pressure regulating valve, high pressure gauge, full computer monitoring instrument box
