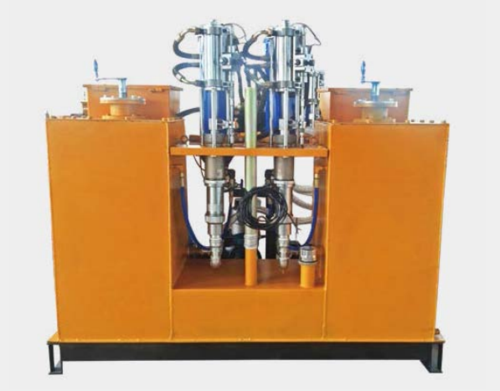

It is designed for large-scale road, especially apply to city road, airport and express way etc.
It can mark actual line, dotted line, double yellow line etc.
It is equipped with double spray gun and double paint bucket, also can add additional manual spray gun, to make it mark road line in different color at the same time.
Main Engine configuration
Truck Loading configuration
Machine parameters
1. 270 Honda engine
1.Automatic break line machine(Simens)
Maximum flow：30L
2. Gear pump
2. Manual controller (Simens)
Maximum work pressure: 30Mpa
3. Oil tank
3. Shelf of the spray gun (one group)
Weigh of facility: 820kg
4. Pressure regulator
4.Two solenoid valves(COMAZZI)
Width pf spray: 50-900mm
5. Accumulator
5.Two automatic spray gun
Thickness of spray: 0.2-0.6mm
6. Reverser
6.Four pieces of high pressure tube(3.5m)
Work performance: four guns can spray at the same time by truck moving
7. Reversing oil tank
7.Rotary encoder(Omron)
Dimension: 1530x1230x1380mm

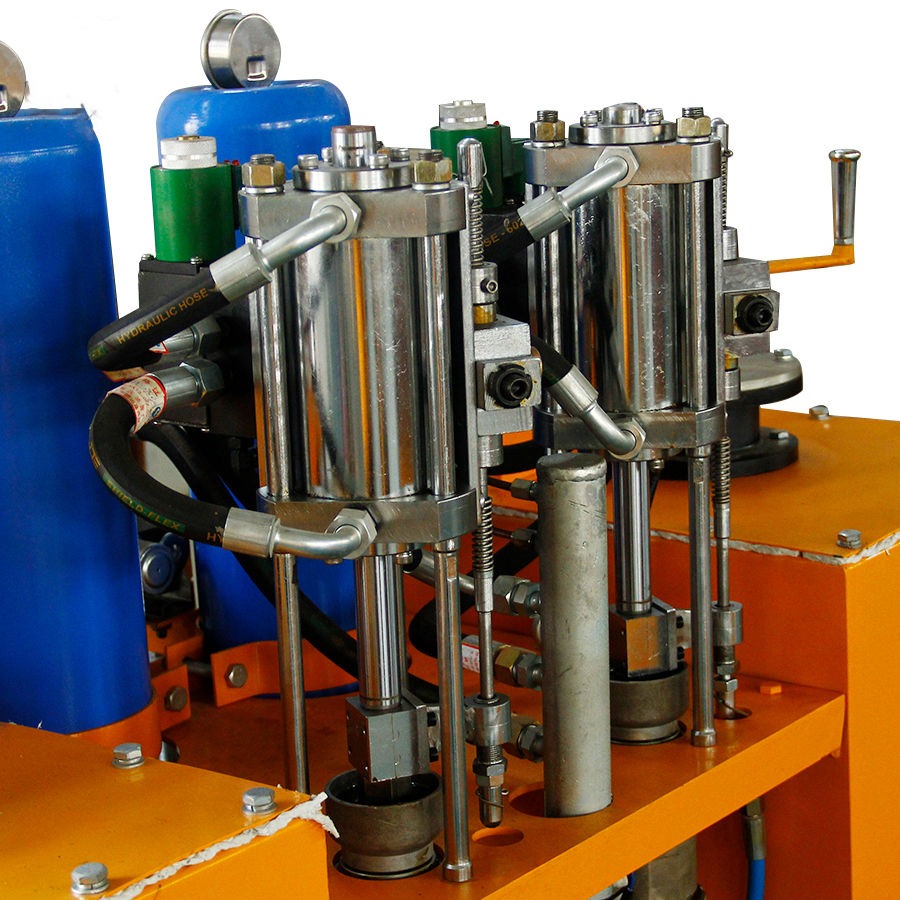

8. Paint high pressure pump
8.10m High pressure tube. One manual spray gun
Net weight: 820kg
9. Strainer
9.One yellow paint bucket and one white paint bucket
10. Air compressor
10.One set water line shelf
